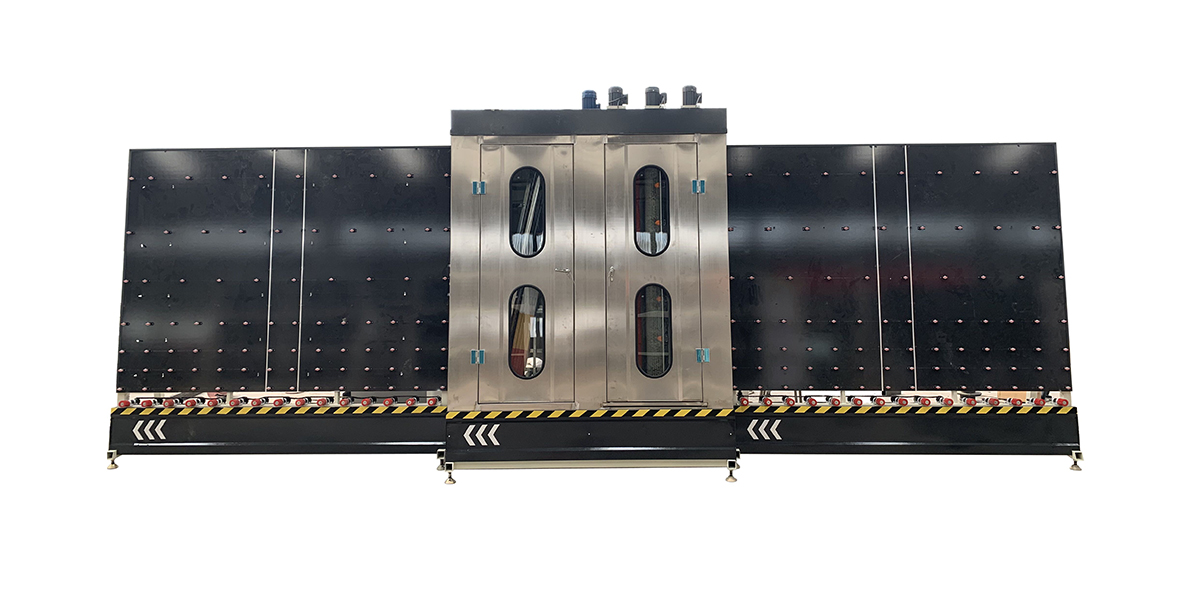

Vertical Glass Washing & Dry Machine YD-VW-series

Vertical Glass Washing & Dry Machine YD-VW-series

Advantage

To wash glass height 1.5m, 2m and 2.5m.

With 3 pairs of brushes, 2 pairs of water absorbing sponges and 1 pair of air blade.

With one blower put into sound insulation box.

Stepless speed control or FVR speed control for option.

Alum glass rack, strong and durable.

Stainless machine cover, water tank.

High efficiency, save occupation.

High Pressure Wind Blade Glass Washing Machine YD-HWB-series

High Pressure Wind Blade Glass Washing Machine YD-HWB-series

Model Number

YD-VW-1600

YD-VW-2000

YD-VW-2500

Max. glass width (mm)

1500

2000

2500

Min. glass (mm)

300×300

300×300

300×300

Glass thickness (mm)

3~19

319

319

Glass speed (m/min)

1~6

1~6

1~6

Power (kw)

8.75

16.25

18

Outer dimension (mm)

6.4×1.15×2.48

6.8×1.15×2.88

6.8×1.15×3.3

Weight (kg)

1400

1800

2200
