Glass Loading Machine
Brief Introduction

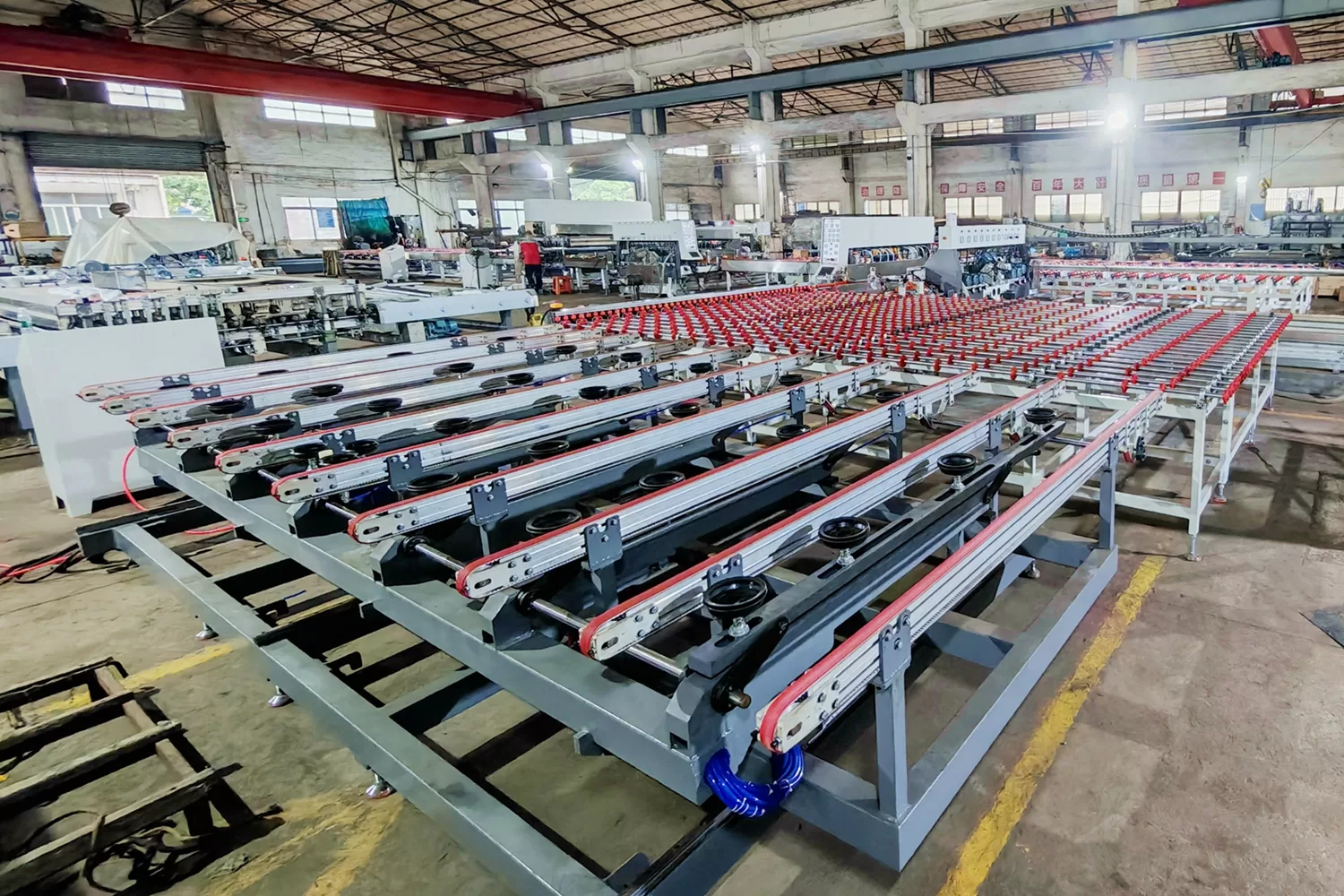

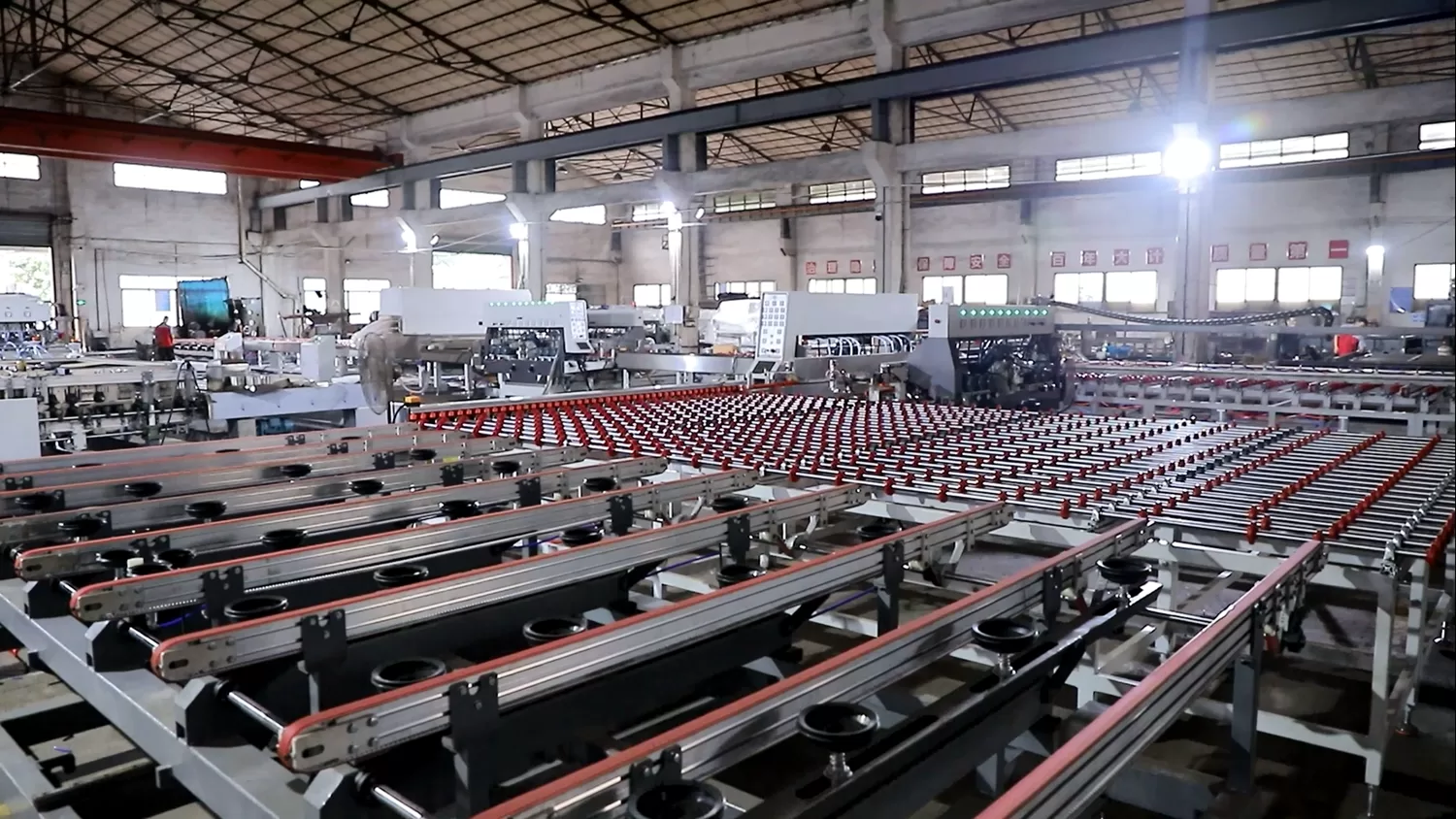

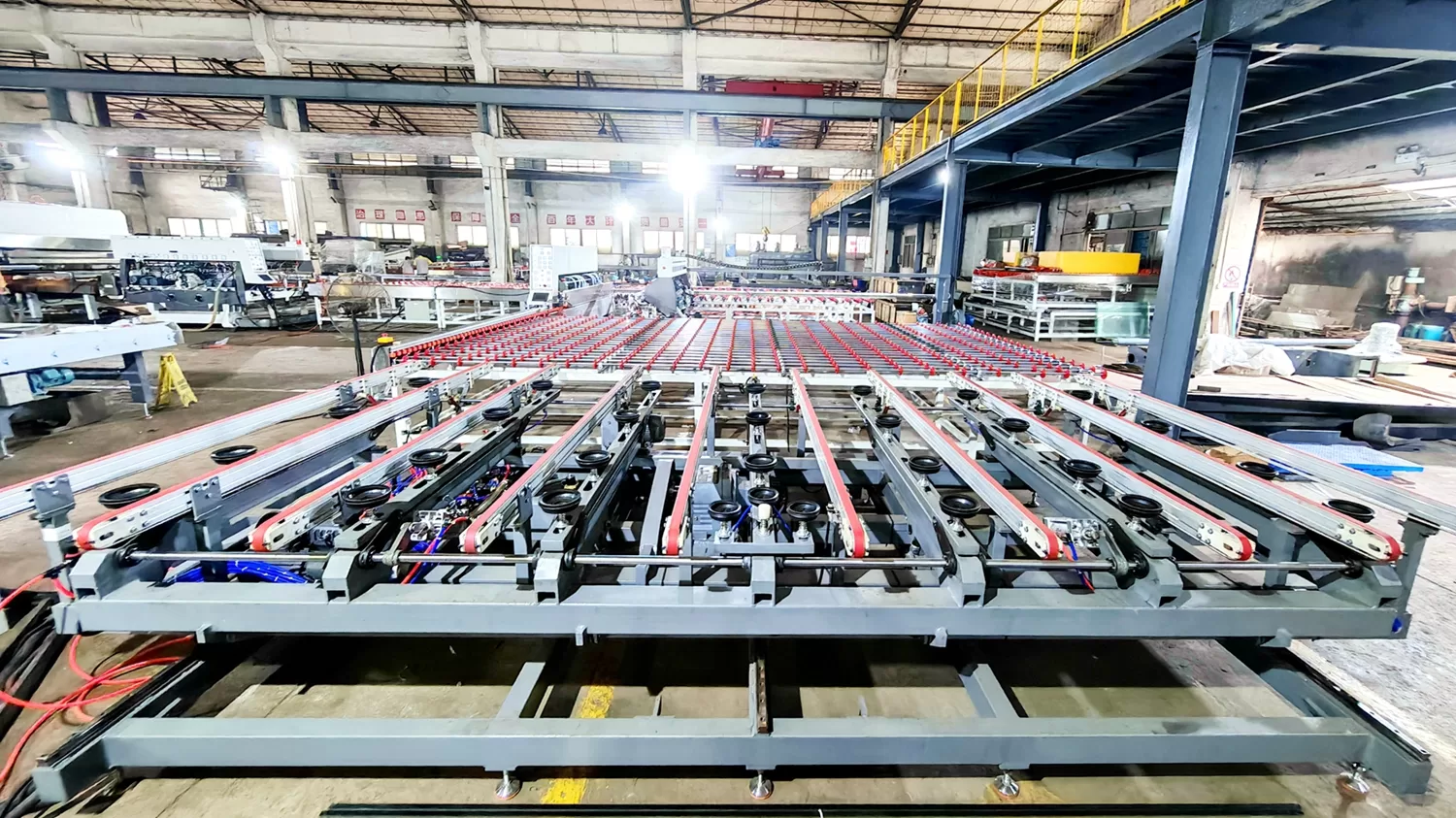

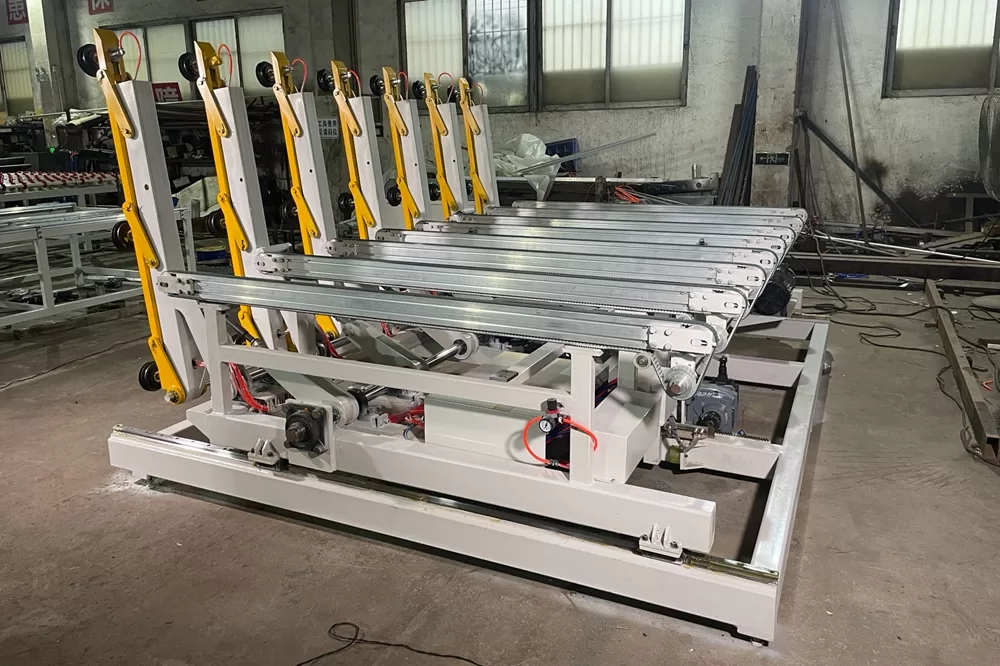

Horizontal glass loading machine plays an auxiliary but important role in the glass processing business.
As it is able to connect with the horizontal glass double edging machine and glass washing and drying machine, it can greatly improve the productivity and reduce labor costs.
Application
Construction, Furniture, Home furnishings, etc.
Features

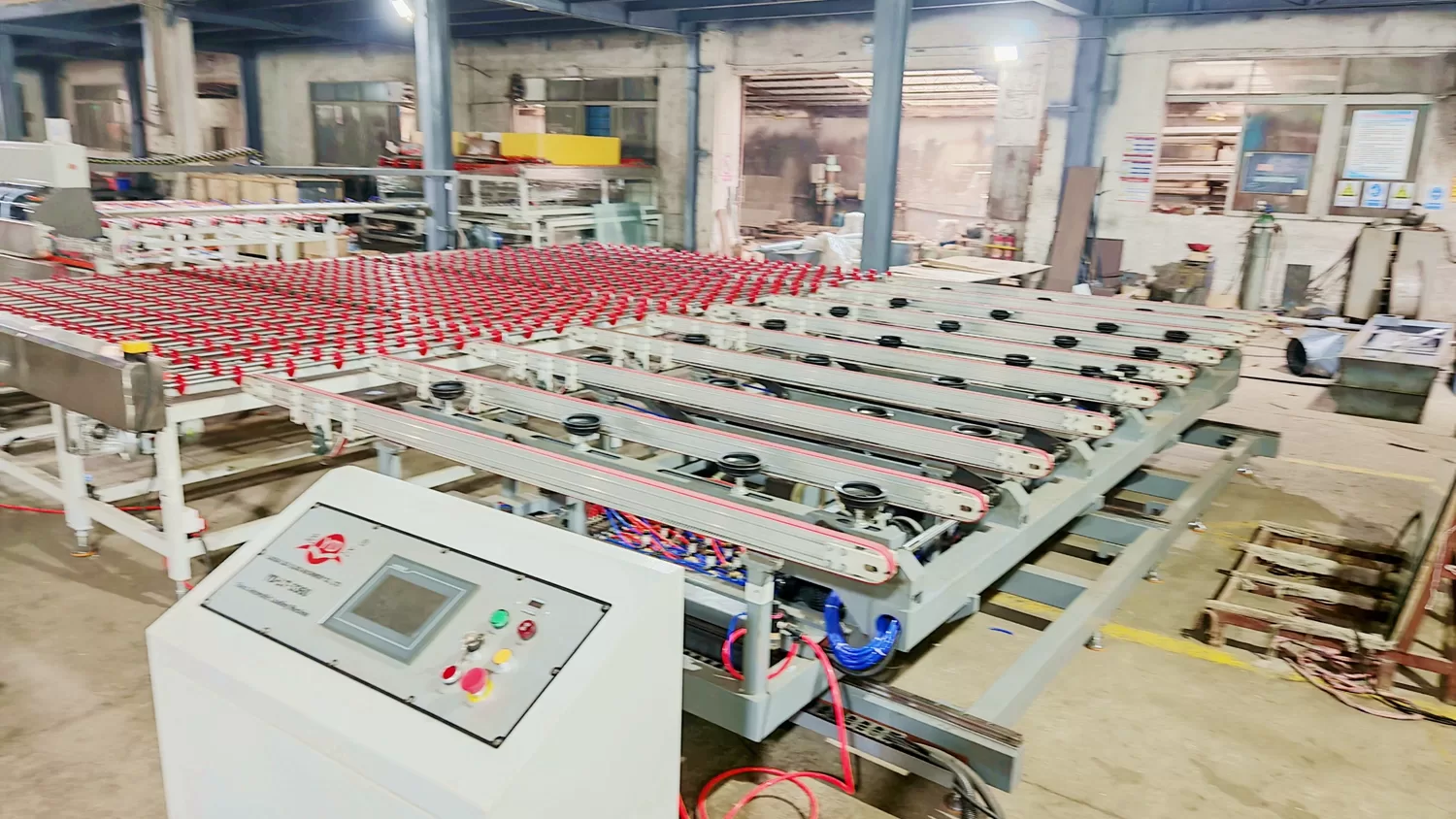

Intelligent PLC system with touchscreen.
Less labor costs.
Safety ensured.
Customization.
| Model | YD-LT-3360 | YD-LT-2442 | YD-LT-2536 | YD-LT-2030 |
| Max. Glass Size (mm) | 3300×6000 | 2400×4200 | 2500×3600 | 2000×3000 |
| Min. Glass Size (mm) | 800×1000 | 700×800 | 600×700 | 500×600 |
| Glass Thickness (mm) | 3~19 | 3~19 | 3~19 | 3~19 |
| Number of loading arms | 7 | 7 | 7 | 5 |
| Number of suction cups on each loading arm | 4 | 4 | 3 | 3 |
| Power (kw) | 7.5 | 7.5 | 7.5 | 7.5 |
| Working Speed (m/min) | 3~6 pieces/min | 3~6 pieces/min | 3~6 pieces/min | 3~6 pieces/min |
| Outer Dimension (mm) | 6000×3500×900 | 4200×2600×900 | 3600×2700×900 | 3000*2200*900 |
| We can customize the size according to your request. | ||||
