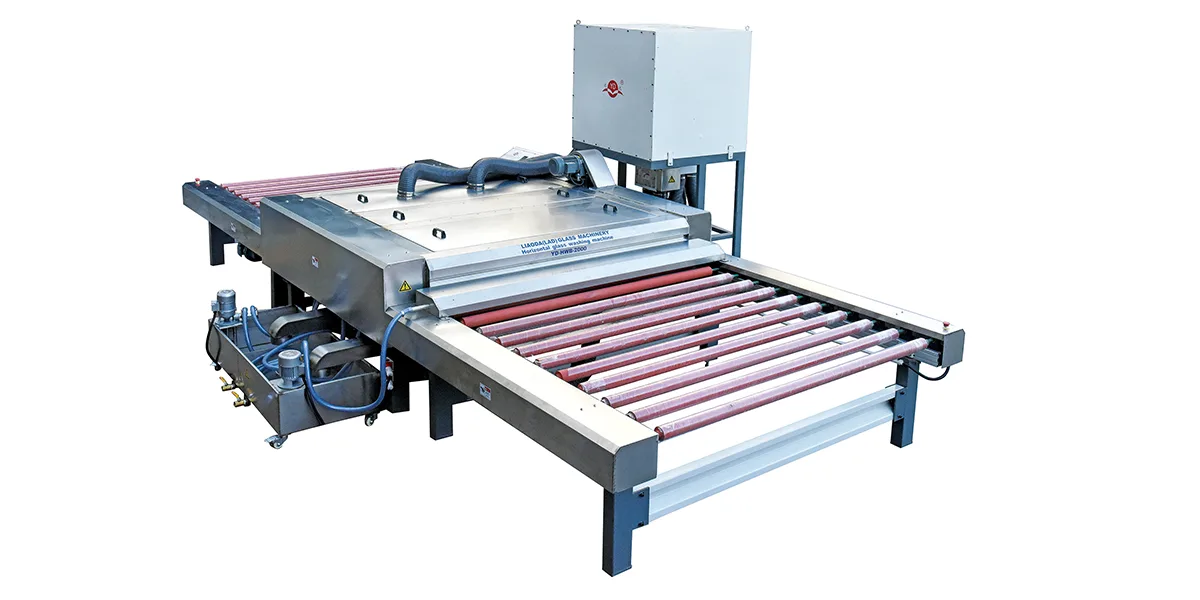

High Pressure Wind Blade Glass Washing Machine YD-HWB-series

High Pressure Wind Blade Glass Washing Machine YD-HWB-series

Application

High productive working speed is up to 12m/min.

Suitable for cleaning and drying flat glass and LOW-E glass.

2 pairs of high pressure air blades (up and down) in the machine to dry glass.

3 pairs of rotary brushes (up and down) in the machine to wash glass.

Hot air dryer, temperature is 40~60°C.

One set of air blower with insulation box.

The top washing section height can be adjusted, good for maintain.

Stainless steel cover and plastic water pipe.

Energy saving, high speed and high efficiency.

High Pressure Wind Blade Glass Washing Machine YD-HWB-series

High Pressure Wind Blade Glass Washing Machine YD-HWB-series

Model Number

YD-HWB-2000

YD-HWB-2500

YD-HWB-3300

Max. glass width (mm)

1900

2440

3200

Min. glass (mm)

400×400

500×500

600*600

Glass thickness (mm)

3~25

4~25

4~25

Glass speed (m/min)

0.8~6

0.8~6

0.8~6

Compressed air Consumptions (lt/min)

<0.5

<0.5

<0.5

Pressure (kg/cm2)

8

8

8

Power (kw)

28

30

38

Outer dimension (mm)

6×2.5×2.4

7×3.0×2.4

8.9×4.0×2.4

Weight (kg)

3000

4000

6000
