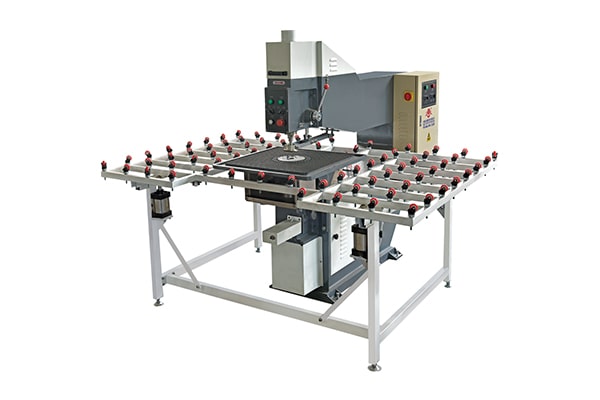

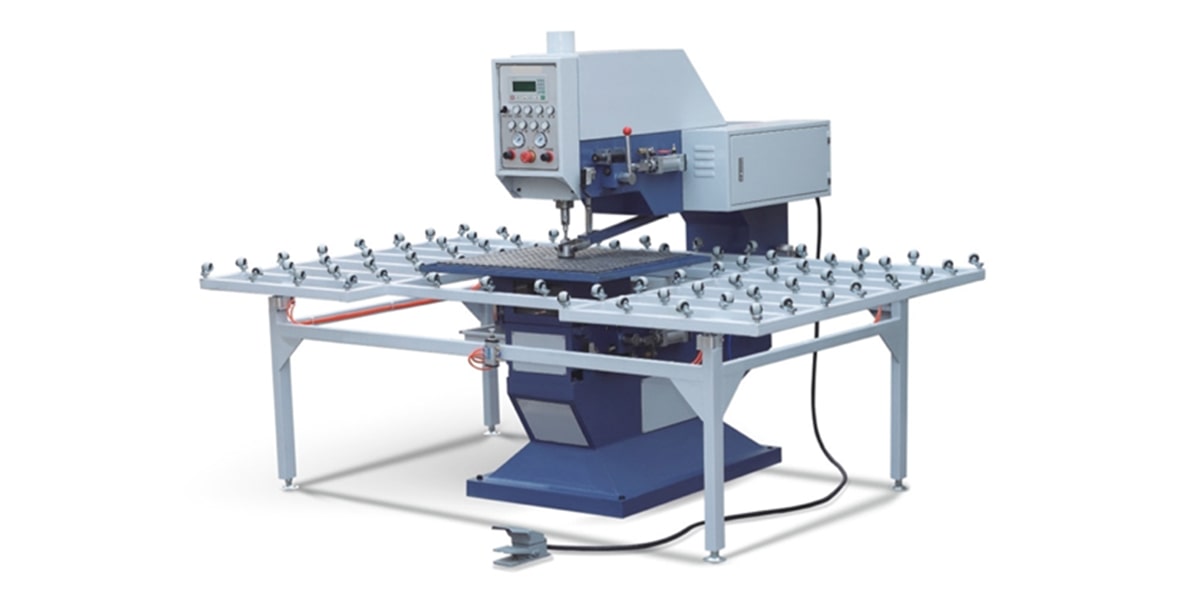

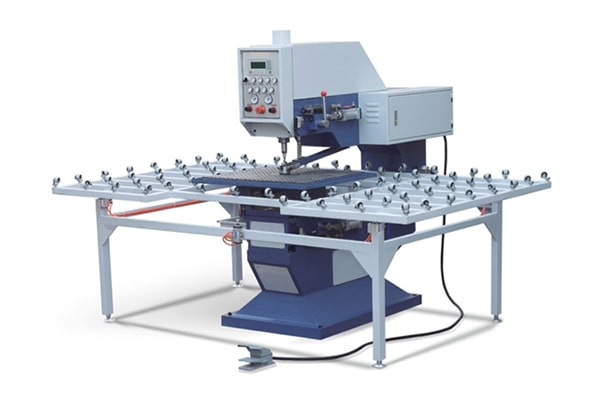

Full Automatic Glass Drilling Machine

Full Automatic Glass Drilling Machine

Application

There are two drilling spindles up and down, tapping or chamfering can be made on the hole for particularly purpose. The spindle is sophisti-cated such that it is strong enough for 24 hours running a day.

The rigid and anti-corrosive spindle enables maintenance free.

Advantages

Adopts PLC control and Oil pressure buffer technology.

Drilling depth adjusted automatically.

Operation can be a single cycle, continuous cycle.

With the use of food pads to facilitate large scale glass sheet hole drilling.

Fast drilling with high quality.

Movable coordinate location, High precision of perforation pitch.

With laser position indication function.

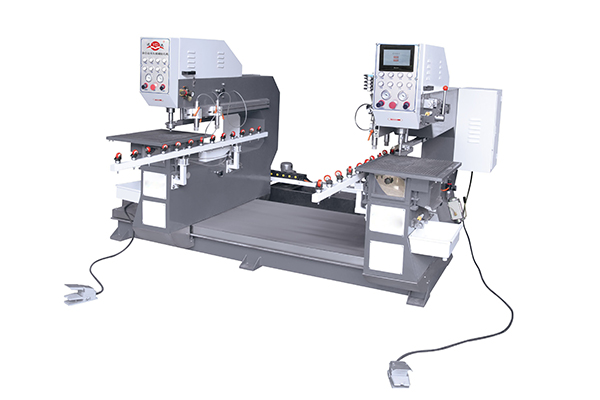

Glass Double Heads Drilling Machine YD-DHD-5/80

Glass Double Heads Drilling Machine YD-DHD-5/80

Glass Double Heads Drilling Machine YD-DHD-5/80

Glass Double Heads Drilling Machine YD-DHD-5/80

Glass Double Heads Drilling Machine YD-DHD-5/80

Glass Double Heads Drilling Machine YD-DHD-5/80

Model Number

YD-HD-5/80A

Distance from hole centre to C-stand (mm)

1250

Hole diameter (mm)

3~220

Glass thickness (mm)

3~30

Concentric tolerance (mm)

±0.5

Compressed air Consumption (It/min)

0.3-1

Pressure (kg/cm2)

8

Power (kw)

3

Outer dimension (m)

2.2×2×1.6

Weight (kg)

750
