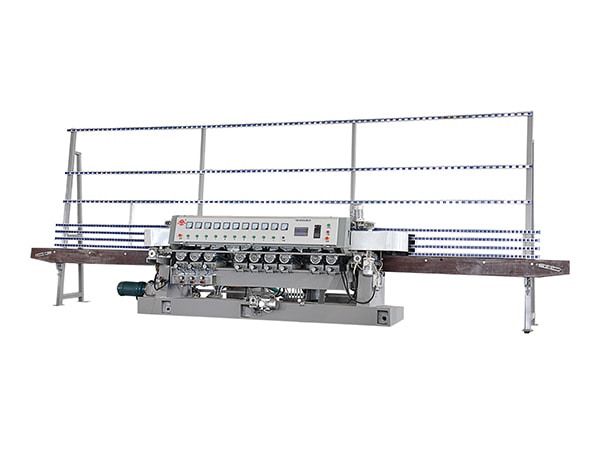

Vertical Glass Straight Line Beveling Machine YD-BM-series

Vertical Glass Straight Line Beveling Machine YD-BM-series

Application

Vertical straight-line beveling edge grinding machine is mainly used for machining flat glass, mirror 0 to 30 degrees hypotenuse, infinitely variable speed, pneumatic polishing.

Advantage

Suitable for processing beveling edge on flat glass and mirror.

Adopt pneumatic polishing system, synchronic belt and high precision, stable electric motors.

High efficiency synchronized feed spindles.

Manual control and PLC touch screen control for options.

High efficiency, high quality, stable running and simple operation.

Machine grinding spindles can be customized.

YD-BM-10S machine type front beam hoist is suitable for processing small specification glass size minimum 30 x30mm.

YD-BM-10-45 machine type grinding angle is from 0 to 45 degree, minimum 30 * 30 mm Mosaic glass processing. Maximum width of edge grinding is 40 mm.

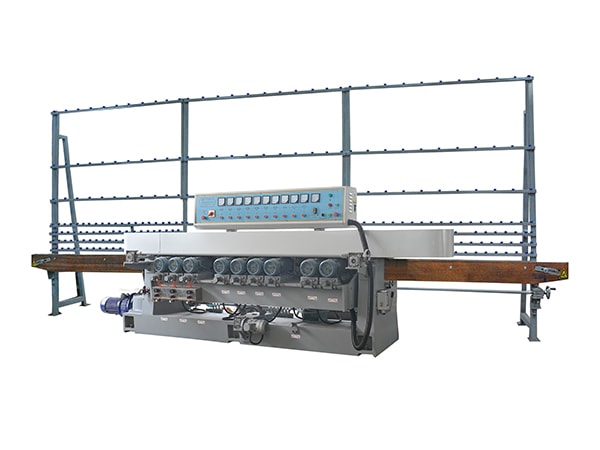

Vertical Glass Straight Line Beveling Machine YD-BM-series

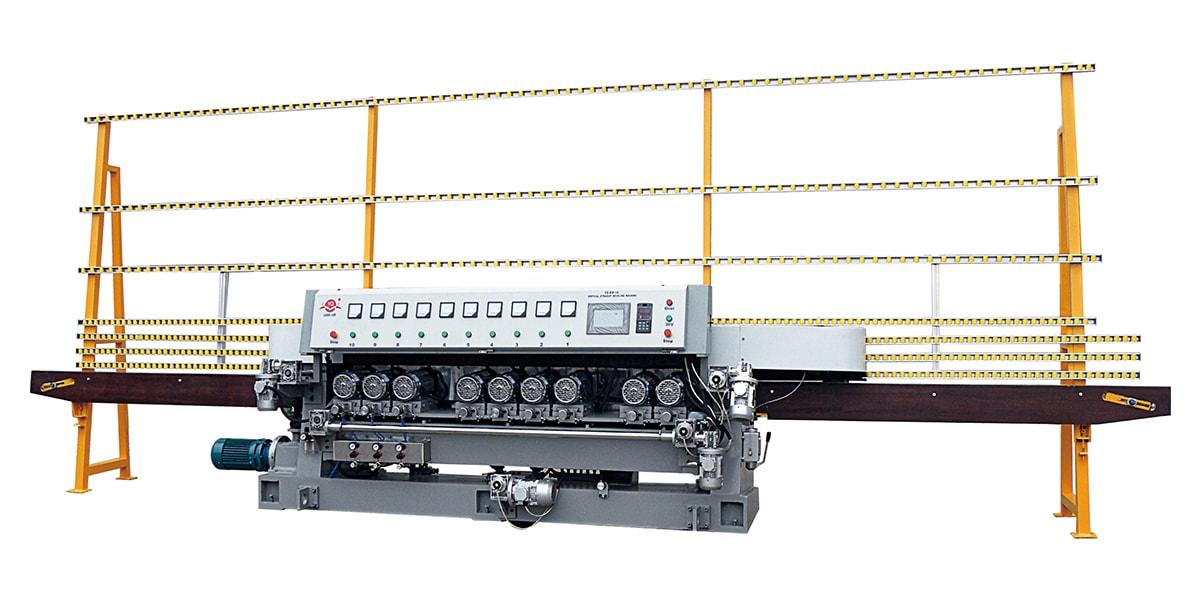

Vertical Glass Straight Line Beveling Machine YD-BM-series

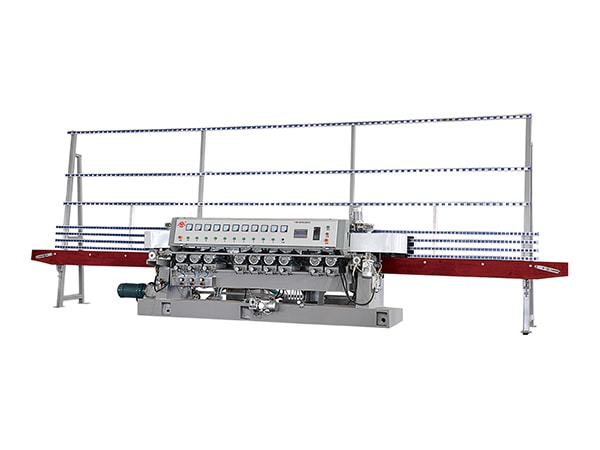

Vertical Glass Straight Line Beveling Machine YD-BM-series

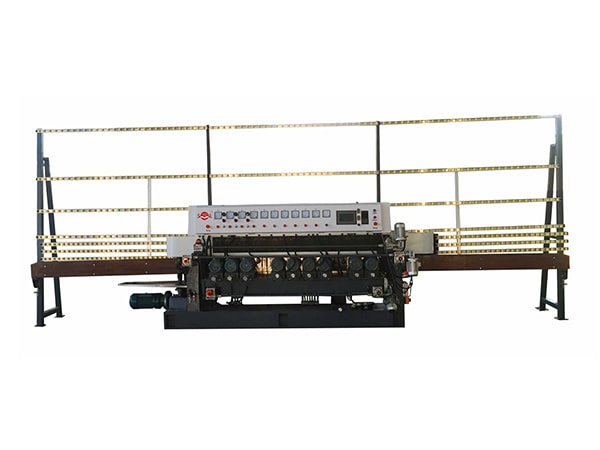

Vertical Glass Straight Line Beveling Machine YD-BM-series

Automatic Glass Beveling Machine and Manual Glass Beveling Machine

For the home or professional, there is no better choice than an automatic glass beveling machine and manual glass beveling machine. They are extremely flexible machines that can do work for many different types of glass, whether it is semi-transparent clear, colored, frosted, or high relief. This article will provide you with a simple overview of both of these options, as well as some useful tips for the home user.

For the home user, there are many reasons to choose an automatic beveling machine and manual beveling machine. One reason is that they are much more affordable than other types of glass tools. They are also much more flexible and do a better job, making it much easier to work with different types of glass. These machines are more versatile than other types of tools because they can do more than just bevel pieces of glass. These are also designed with portability in mind, which makes them ideal for those who do not have a lot of space at home.

Manual bevellers are ideal for home users because they are easily moved around the house. You can put them into your cabinet or shelf and be able to use them without having to constantly move them around. This makes them perfect for the home user. They are also easy to store, especially if you have enough room to carry one. As mentioned earlier, they are much more flexible than other types of glass tools, making them a very attractive option for the home user.

The automatic glass beveling machine and manual beveling machine are great for the professional. The best ones are specifically designed for the professional. These are machines that have the ability to be re-calibrated by the customer. This is important, because many people will find that they get better results using the machine that they purchase rather than trying to make adjustments on their own. These are typically heavy duty machines, but they have a number of features that make them easy to operate.

Another reason that the automatic glass beveling machine and manual beveling machine is ideal for the professional is because they are more reliable than most other types of equipment. Even though they are cheaper, they are much stronger than most of the other tools that are available. You will find that they do not require a large amount of repairs. They are also usually quite heavy and sturdy, making them a popular choice for the professional.

There are other advantages to using an automatic glass beveling machine and manual glass beveling machine. Both types of machines can give you great results without the need for any human intervention. You can simply slide them into place and start beveling. This eliminates the time and energy spent trying to calculate angles and figuring out how to create a bevel line. The type of machine that you choose should be dependent on the type of glass that you are working with.

For instance, a tempered glass surface requires special attention when beveling. In fact, if you are looking for a glass beveling machine and manual glass beveling machine, tempered glass is probably the best option. It takes more practice and expertise to achieve the same results as a clear glass surface, but it will work just as well.

If you are looking for the best automatic glass beveling machine and manual glass beveling machine, you should consider investing in a machine that is suitable for tempered glass. If you want to use other types of glass, you should look for one that is intended for the type of glass that you are working with. It is best to know what you are doing before you start to bevel anything. and you should always buy your machine from a reputable vendor.

Model

YD-BM-9

YD-BM-10

YD-BM-10S

YD-BM-10-45

YD-BM-11

YD-BM-13

Grinding wheel total Numbers

9

10

10

10

11

13

Glass thickness (mm)

3~19

3~19

3~19

3~19

3~19

3~19

Minimum glass (mm)

150×150

150×150

30x30

30x30

150×150

150×150

Bevel edge Angle (degrees)

3~30

3~30

3~30

3~45

3~30

3~35

Bevel edge width (mm)

35

40

40

40

40

35

Glass speed (m/min)

0.8~3

0.8~3

0.8~3

0.8~3

0.8~3

0.8~~3

Compressed air gas consumption (litres/minute)

<1

<1

<1

<1

<1

<1

Power (kw)

21

23.5

23.5

23.5

25

29

Overall dimensions (m)

7×1.2×2.6

7×1.2×2.6

7.2×1.2×2.6

7.2×1.2×2.6

7.2×1.2×2.6

8×1×2.6

Weight (kg)

3000

3000

3500

3500

4000

4300
