Vertical Straight-line Edging Machine YD-EM-series

Vertical Straight-line Edging Machine YD-EM-series

Application

This type of vertical edging machine is suitable for processing prefect 45 degree arris with high clarity of flat edge. Rough grinding, fine grinding and polish are done at one step.

Advantage

Able to process 45 degree arris with high clearance.

Spindle quantity can be added as required.

Manual control, PLC touch screen control for option.

Stepless speed control or frequency speed control for option.

Chain conveying or bearing conveying system for option.

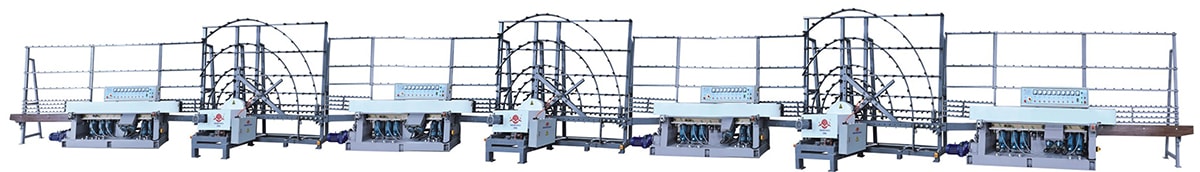

Vertical Straight Production Line

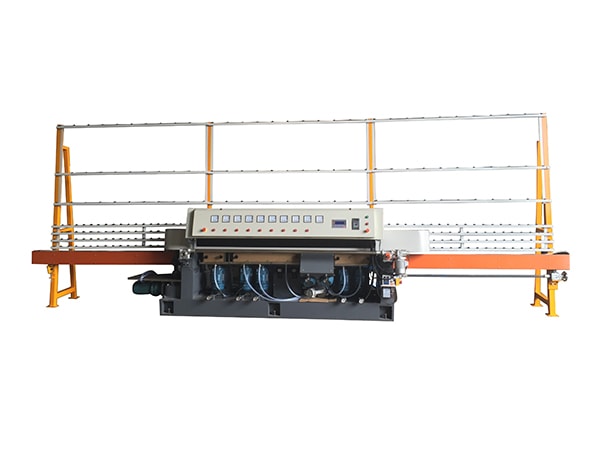

Vertical Straight-line Edging Machine YD-EM-series

Vertical Straight-line Edging Machine YD-EM-series

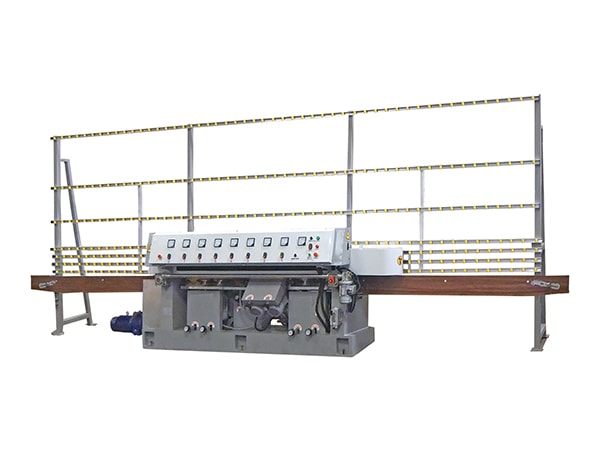

Vertical Straight Line Edging Machine With 45° Chamfer

Vertical Straight Line Edging Machine With 45° Chamfer

Model Number

YD-EM-4

YD-EM-8

YD-EM-9

YD-EM-10

YD-EM-10S

Total nr. of spindle

4

8

9

10

10

Profile

Flat/arris

Flat/arris

Flat/arris

Flat/arris

Flat/arris

Glass thickness (mm)

3~20

3~26

3~26

3~26

3~30

Min. size of glass(mm)

80×80

80×80

80×80

80×80

30×30

Glass speed (m/min)

0.8~6.0

0.86

0.8~6

0.86

0.86

Power (kw)

8.8

15.5

18

20

20

Outer dimension (m)

4.3×1×2.5

6.5×1×2.6

6.8×1×2.6

6.8×1×2.6

7×1×2.6

Weight (kg)

1400

2600

3000

3200

4200
