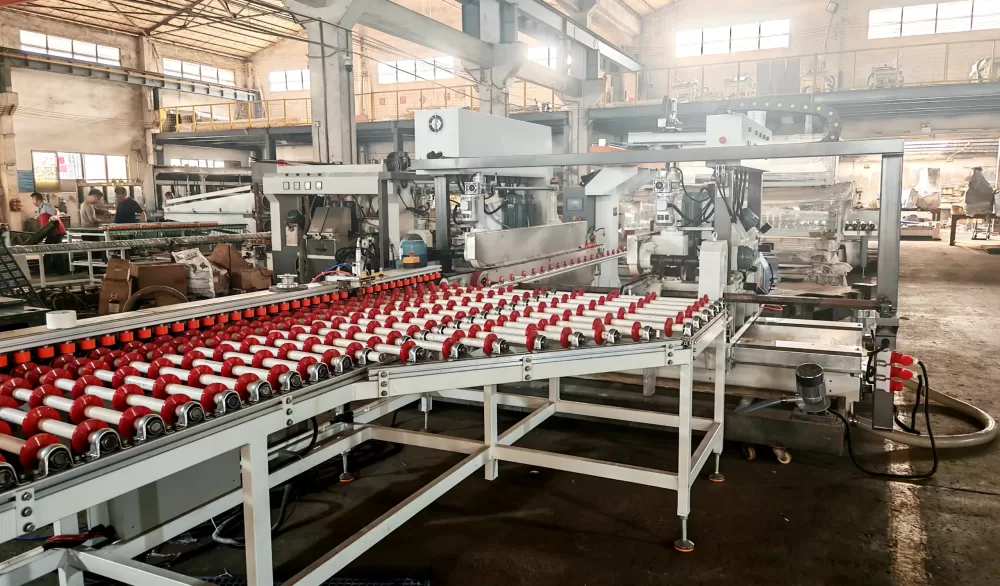

Glass Double Edging and Film Removing Machine

Brief Introduction

The glass double edging and film-removing machine can grind the parallel lines of glass edges for pencil edge (or flat edge) and film-removing for LOW-E glass automatically.

The sections include:

Automatic glass loading robotic arm 1 set.

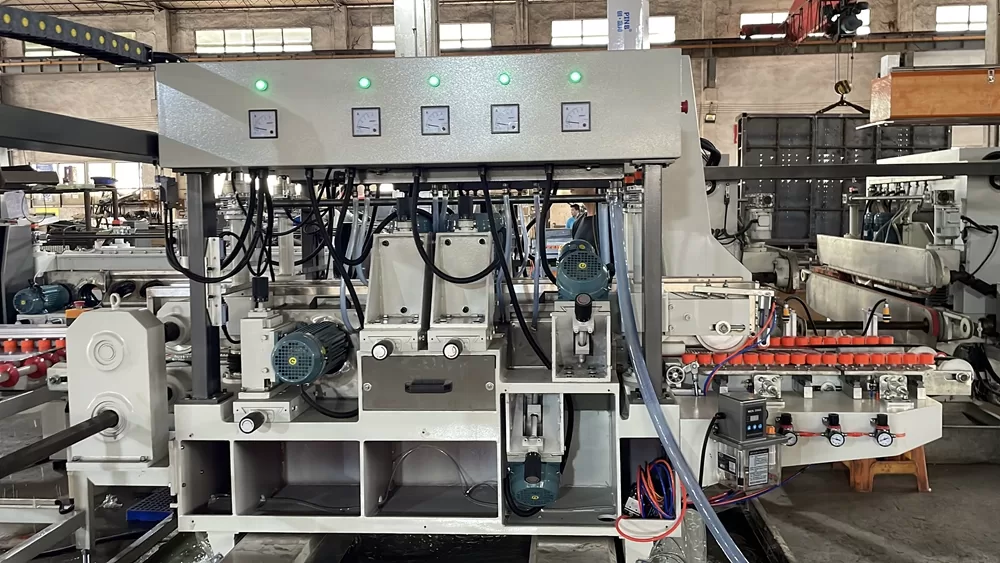

Glass double edging machine 2 sets.

Glass transferring table 1 set.

Glass washing machine 1 set.

Application

Insulating glass, Home appliances, Home furnishings, etc.

Functions

Bilateral glass edge grinding (for pencil edge or flat edge), arris grinding, film removing.

Glass washing and drying.

LOW-E glass applicable.

Features

Intelligent integrated control with touchscreen.

Less labor costs.

High efficiency.

Customization.

More Options

Polishing, safety clipped corner, grooving, trapezoid glass grinding are available.

Glass Double Edging and Film Removing Machine

Model	1# YD-DE-1808+2	2# YD-DE-0808+2
Function	pencil edge(or flat edge with arris), film removing	pencil edge(or flat edge with arris), film removing
Max. glass width	1800 mm	800 mm
Min. glass size	400×300 mm	400×300 mm
Glass thickness	3-19 mm	3-19 mm
Control mode	PLC, with touchscreen	PLC, with touchscreen
Convey speed	0.8-10 m/min	0.8-10 m/min
Width changing speed	0.8 – 7 m/min	0.8 – 7 m/min
Power	28 kw	28 kw
Outer dimension	3.2×3.5×1.8 m	2.0×3.5×1.8 m
Weight	3500 kg	2800 kg

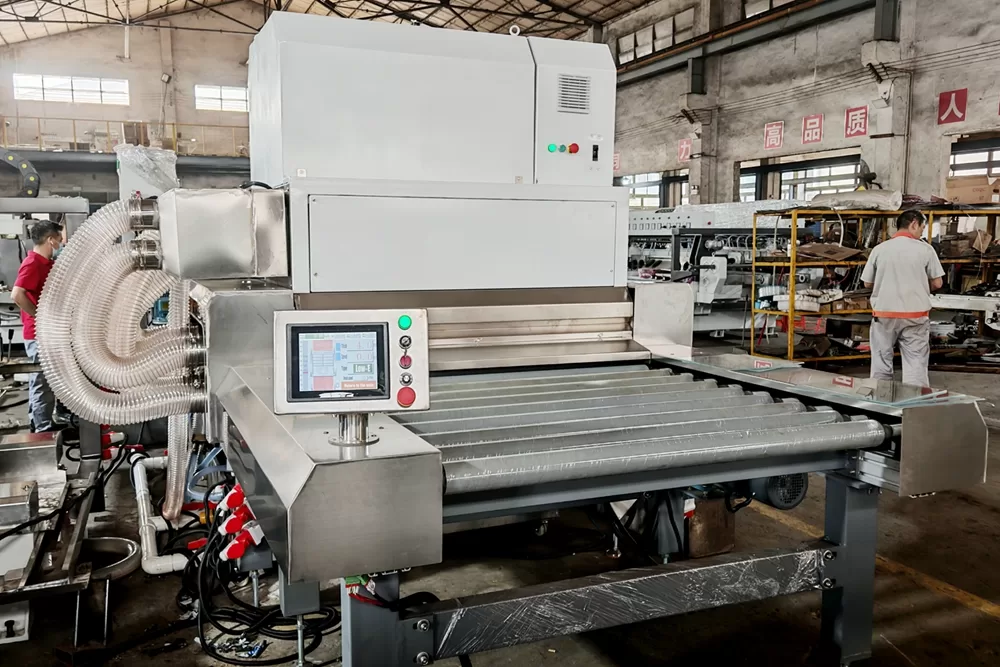

High Pressure Glass Washing and Drying Machine

Model	YD-HWB-1200
Function	Float glass and LOW-E glass washing and drying
Max. glass width	1200 mm
Min. glass size	400×300 mm
Glass thickness	3-25 mm
Control mode	PLC, with touchscreen
Convey speed	0.8-10 m/min
Power	23 kw
Outer dimension	4.5×2.0×2.4m
Weight	2200 kg

Glass Double Edging and Film Removing Machine
